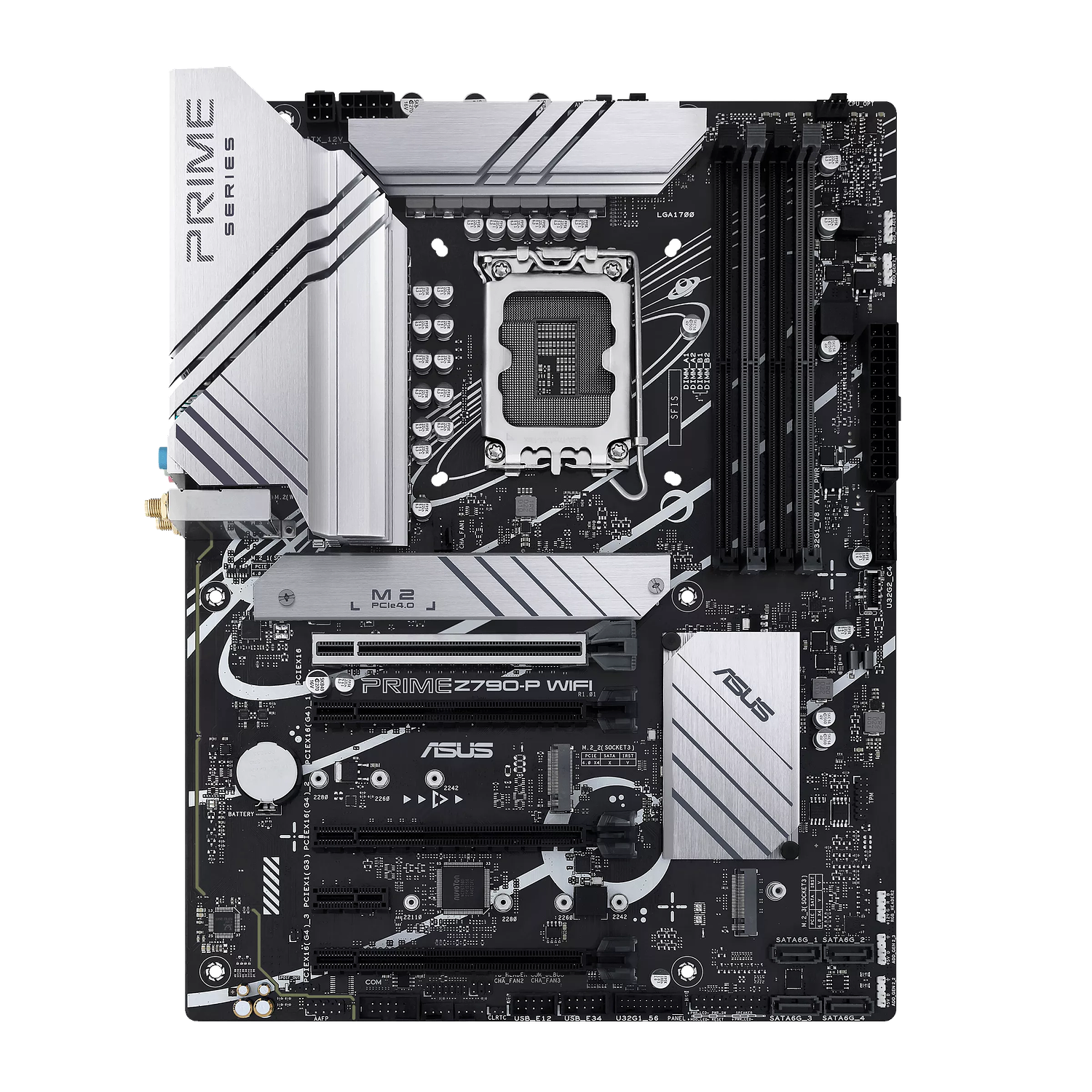

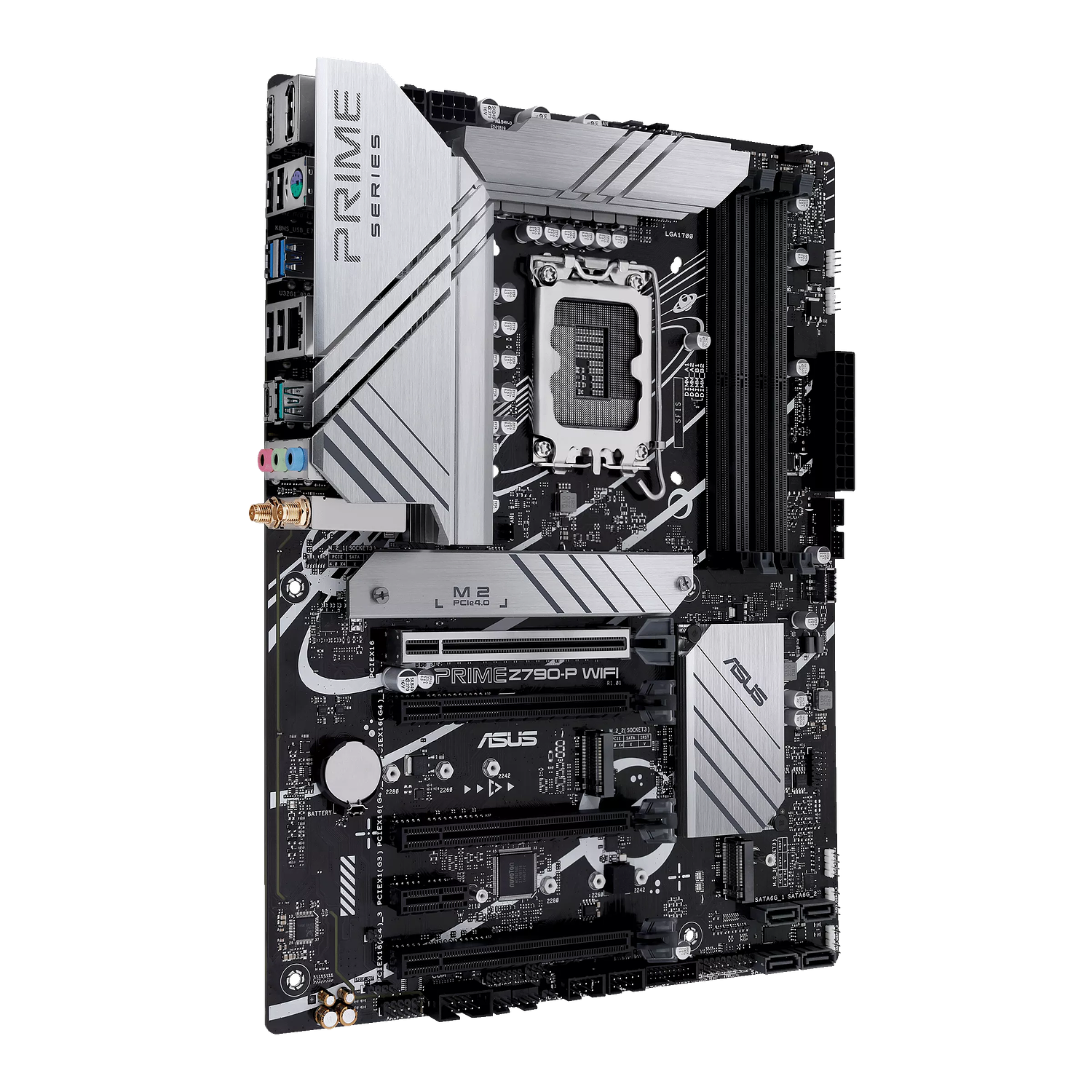

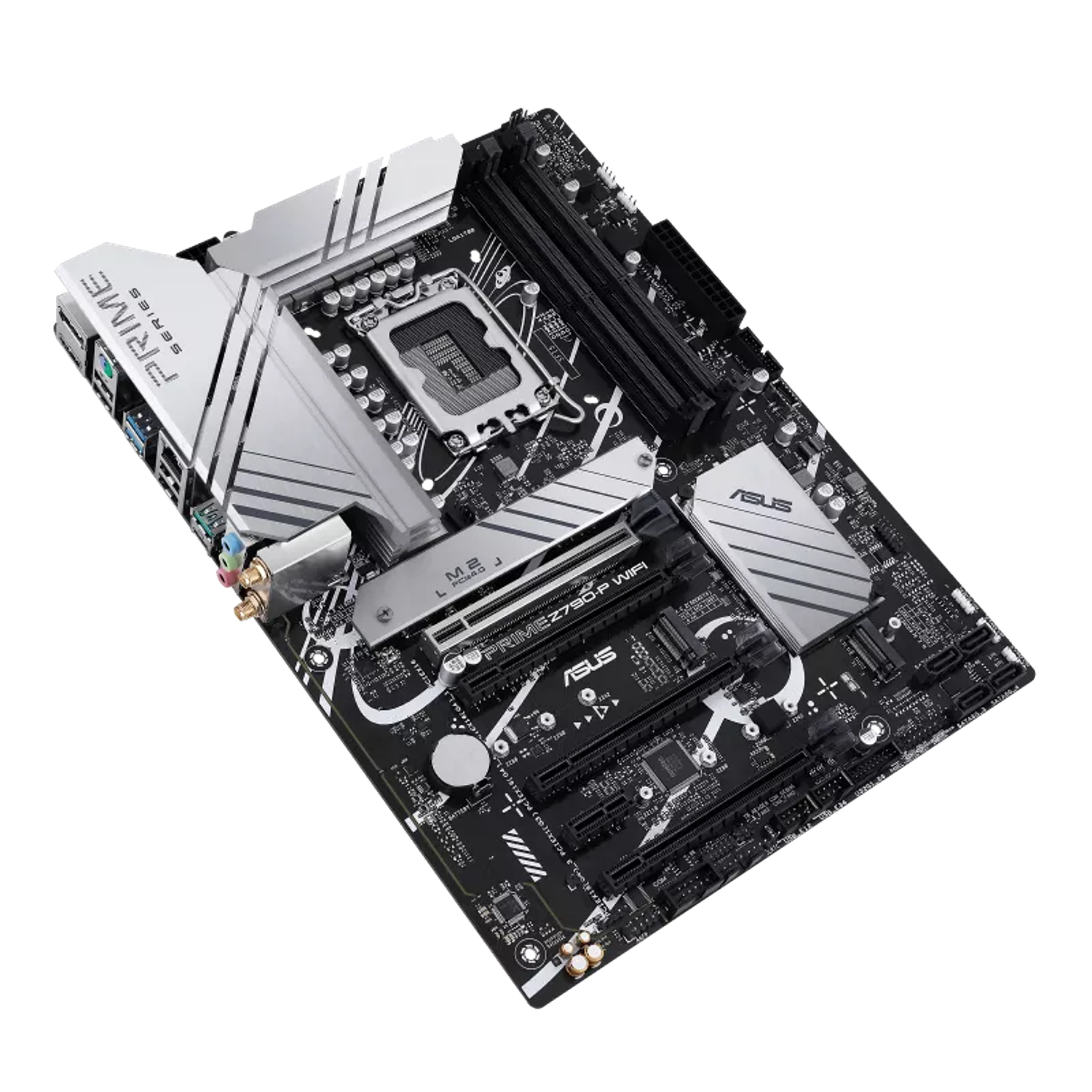

ASUS Prime Z790-P WIFI, una tarjeta madre Intel Z790 LGA 1700 ATX con PCIe® 5.0, tres puertos M.2, 14+1+1 DrMOS, DDR5, Intel WIFI 6, Realtek 2,5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 2 Type-C® frontal®, Thunderbolt™ 4 (USB4®) y Arua Sync
| Componente | Especificaciones |
|---|---|
| Modelo | PRIME Z790-P WIFI |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0. Refer to www.asus.com for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z790 Chipset |
| Memoria | 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem II. Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Gráficos | 1 x DisplayPort. 1 x HDMI® port. Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
| Ranuras de Expansión | Procesadores Intel® 13th & 12th Gen: 1 x PCIe 5.0 x16 slot. Chipset Intel® Z790: 3 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot. Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Almacenamiento | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports. Procesadores Intel® 13th & 12th Gen: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). Chipset Intel® Z790: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports. Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax). Supports 2.4/5GHz frequency band. Bluetooth® v5.2 |
| USB | Rear USB (Total 8 ports): 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A). Front USB (Total 9 ports): 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports. USB_E1 port, USB_E2 port, USB_E3 port, and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port, USB_E7 port, and USB_E8 port share the bandwidth. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC. Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. Supports up to 24-Bit/192 kHz playback. Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

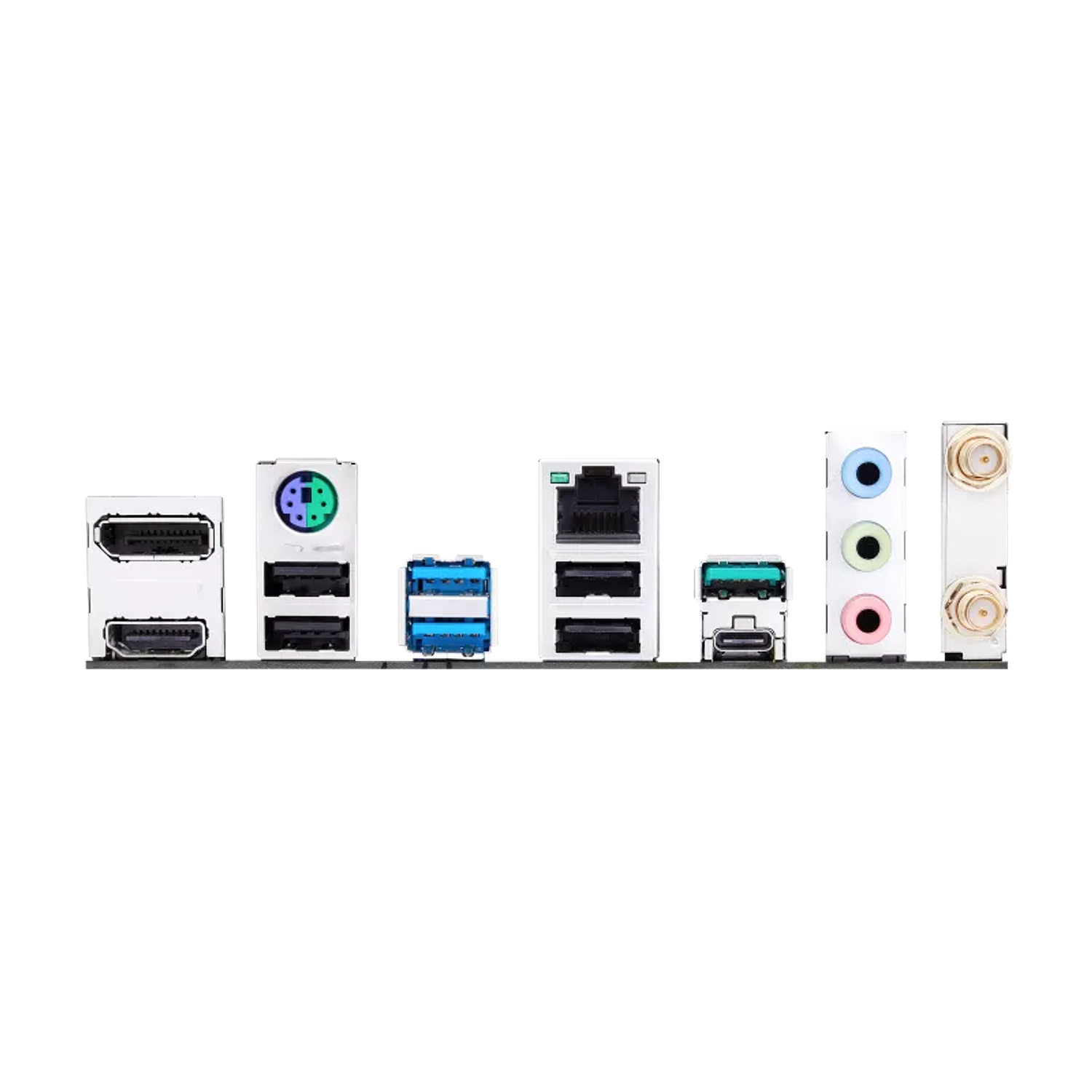

| Puertos I/O Traseros | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 1 x USB 3.2 Gen 2 port (1 x Type-A), 2 x USB 3.2 Gen 1 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port. |
| Conectores I/O Internos | Ventilación: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers. Energía: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector. Almacenamiento: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports. USB: 1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Misceláneos: 3 x Addressable Gen 2 headers, 2 x Aura RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-5pin System Panel header, 1 x Thunderbolt™ (USB4®) Header. |
| Características Especiales | ASUS 5X PROTECTION III: DIGI+ VRM (Digital power design with DrMOS), LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O. ASUS Q-Design: Q-DIMM, Q-Slot, Q-LED Core. ASUS Thermal Solution: Flexible M.2 heatsink, VRM heatsink design. ASUS EZ DIY: ProCool. Aura Sync: Aura RGB headers, Addressable Gen 2 headers. |
| Software | ASUS Exclusive Software: Armoury Crate, Aura Sync, Fan Xpert 4 (with AI Cooling II), Power Saving. AI Suite 3: TurboV EVO, PC Cleaner, DIGI+ VRM. **ASUS CPU-Z, MyASUS. Norton 360 Deluxe (60 Days Free Trial), WinRAR. UEFI BIOS: ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode. |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Gestión | WOL by PME, PXE |

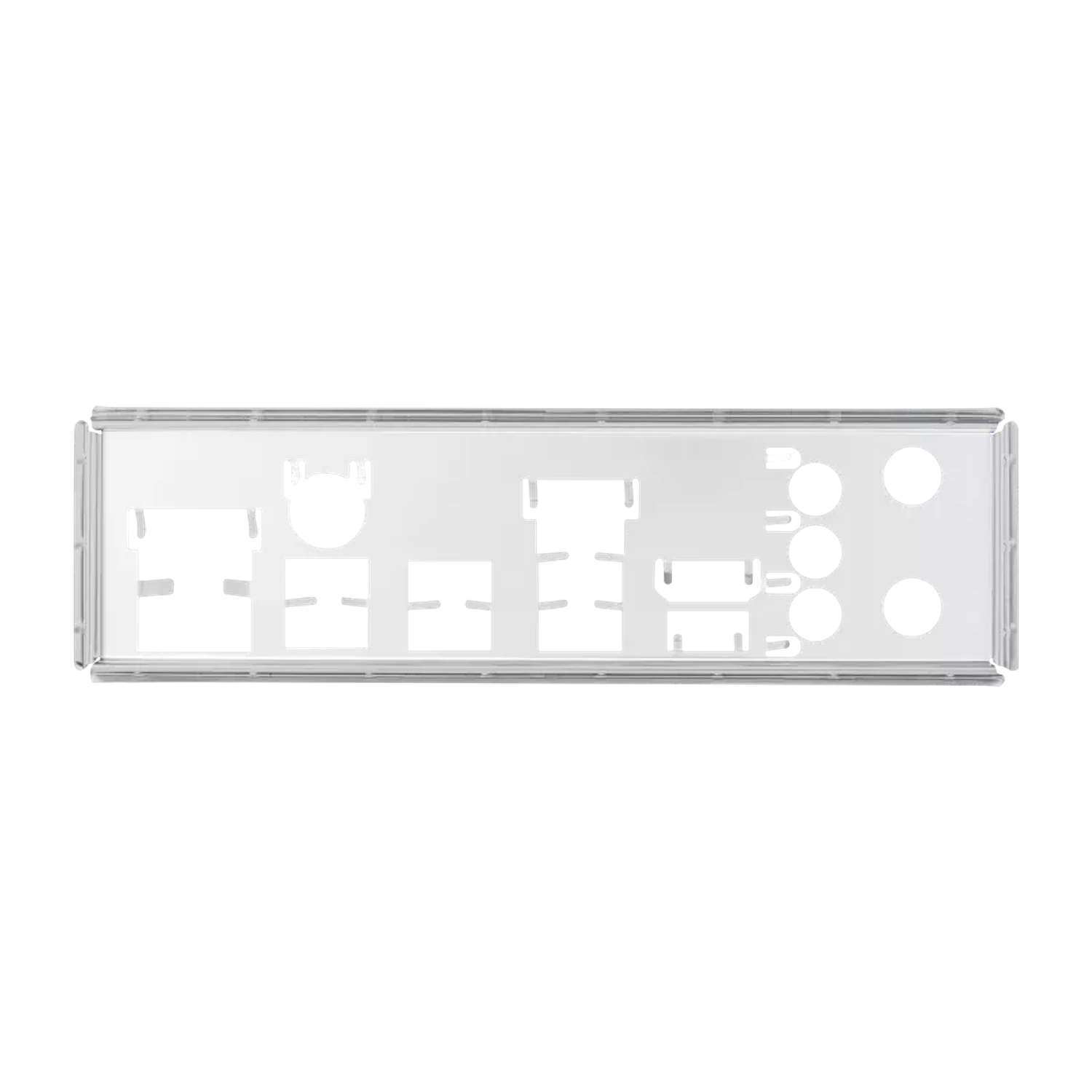

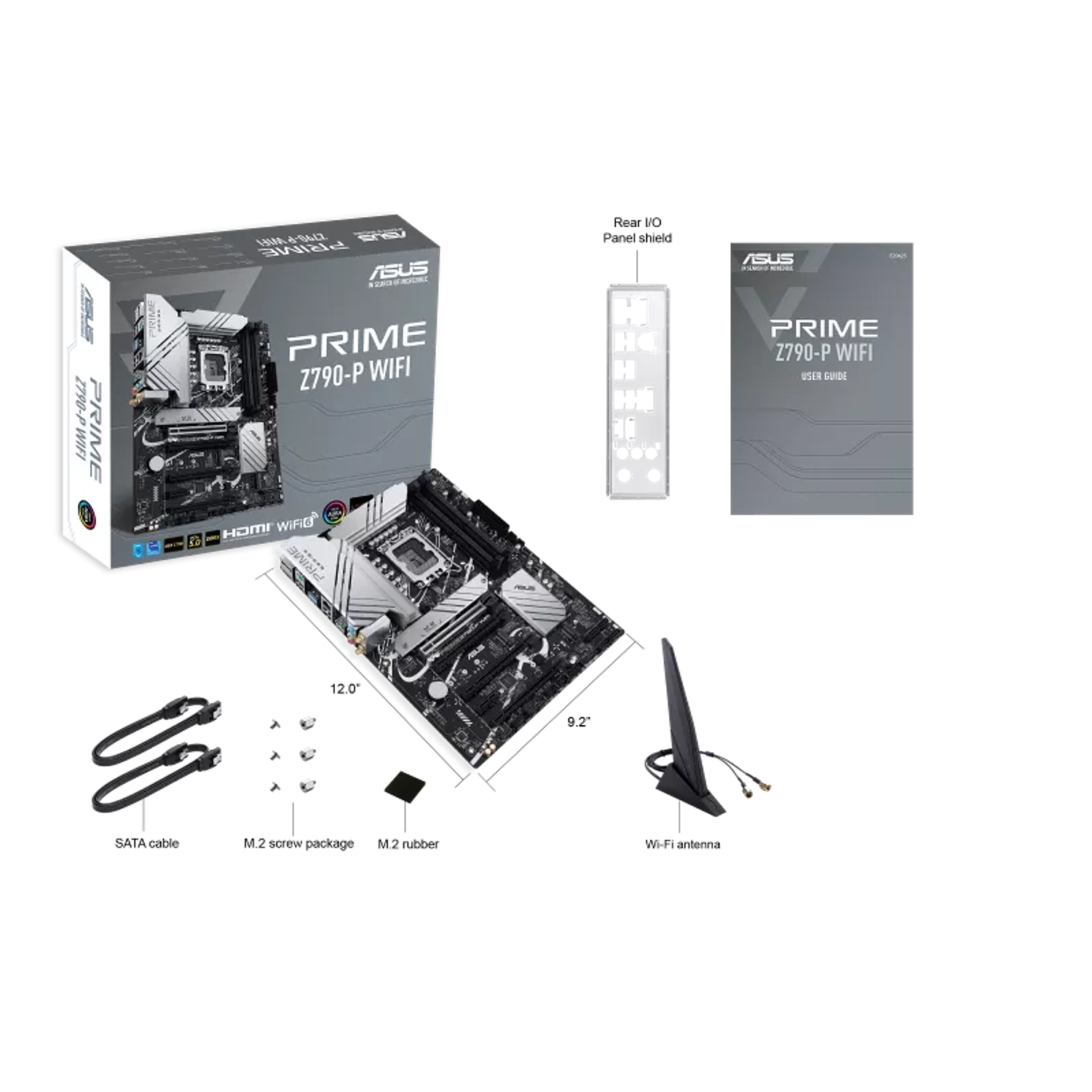

| Accesorios | Cables: 2 x SATA 6Gb/s cables. Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 2 x Screw packages for M.2 SSD. |
| Documentación del Paquete | 1 x User guide |
| Sistema Operativo | Windows® 11, Windows® 10 64-bit |
| Factor de Forma | ATX Form Factor, 12 inch x 9.2 inch (30.5 cm x 23.4 cm) |
