Descripción

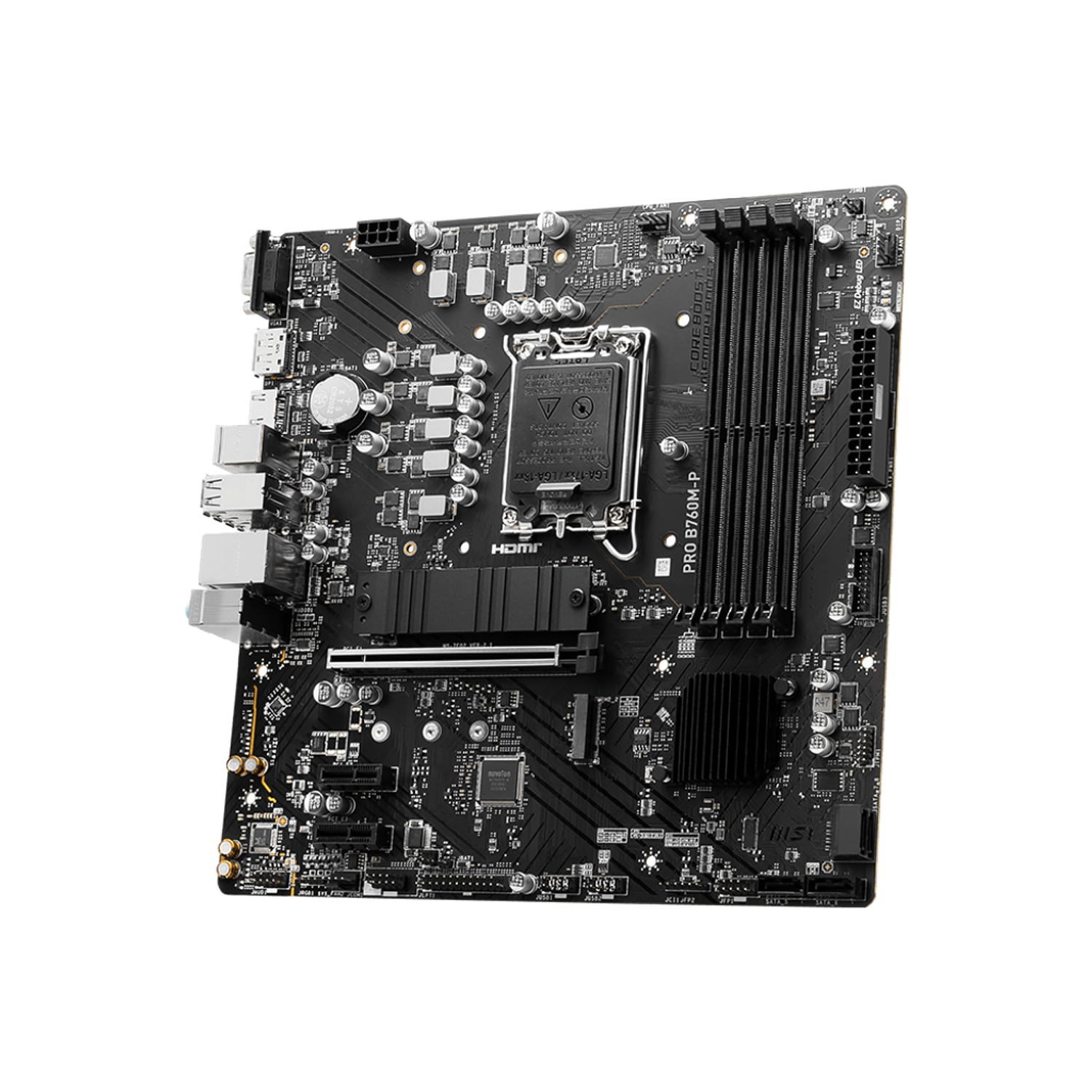

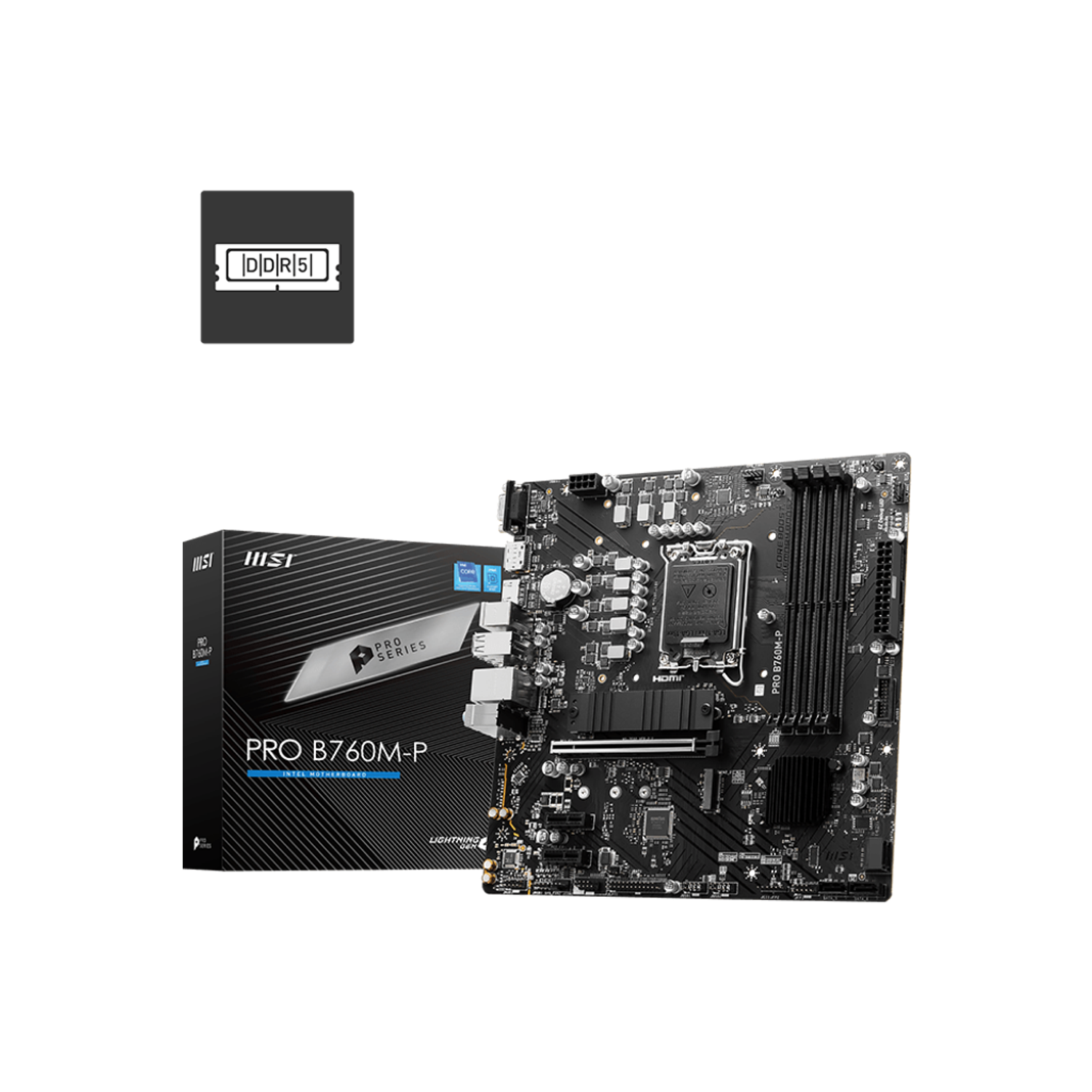

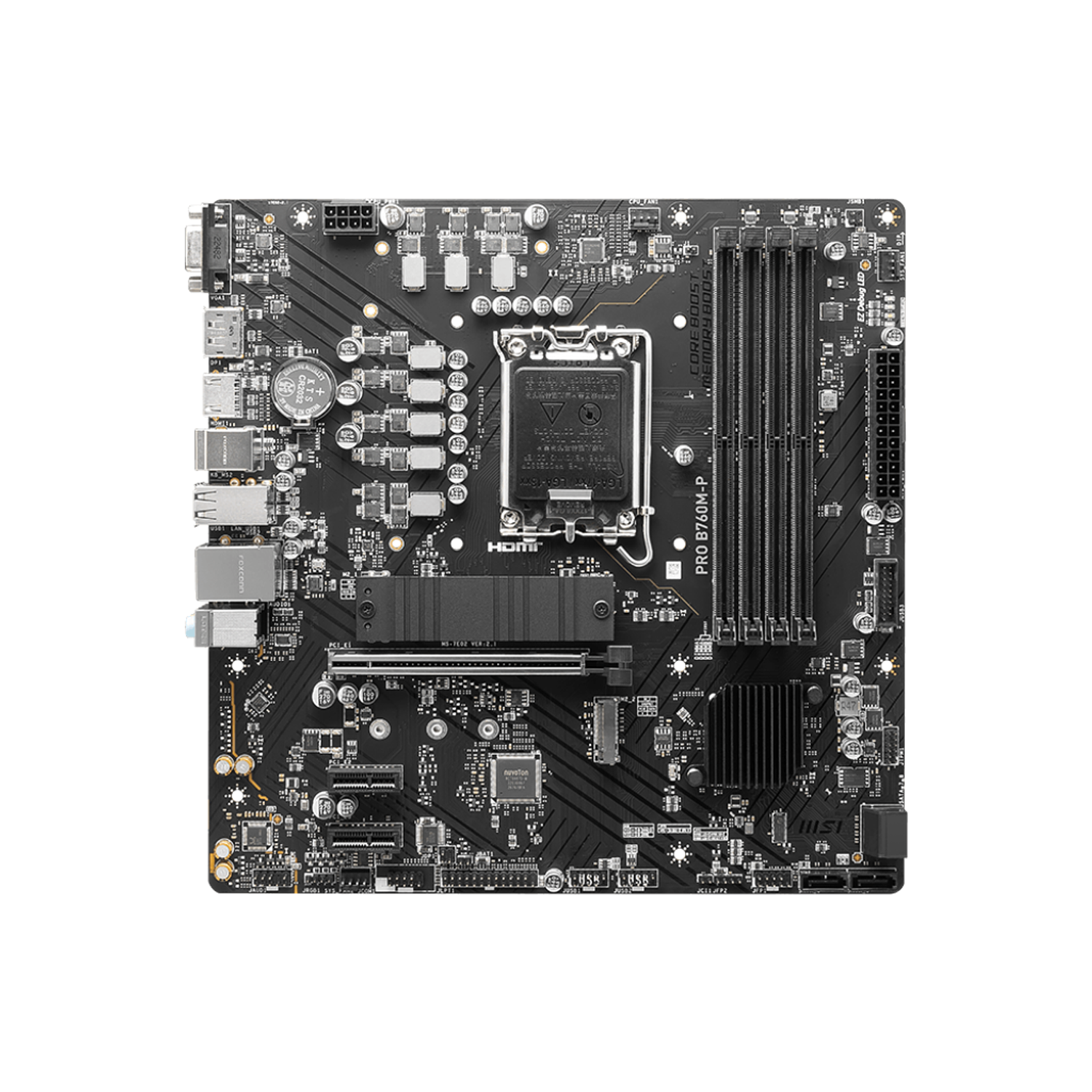

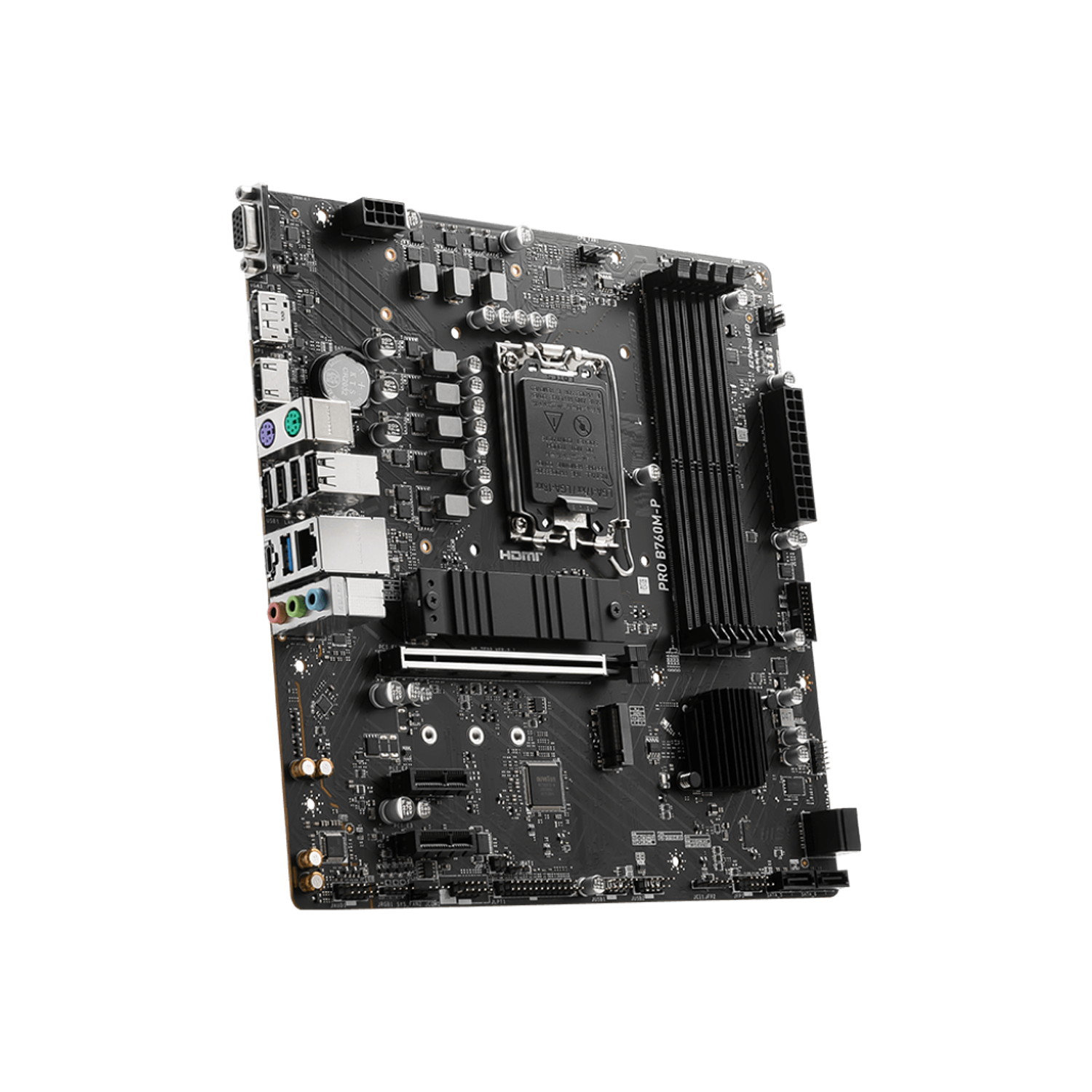

PRO B760M-P

Soporta procesadores de la 12va/13va Gen de Intel^® Core™, Pentium^® Gold y Celeron^® para sockets LGA 1700
Soporta memoria DDR5, doble canal DDR5 6800+MHz (OC)
Core Boost : Con un diseño premium y un diseño de potencia digital para soportar más núcleos y proporcionar un mejor rendimiento.
Memory Boost: Tecnología avanzada para ofrecer señales de datos puras para el mejor rendimiento, estabilidad y compatibilidad.
Experiencia ultrarrápida: PCIe 4.0, Lightning Gen4 x4 M.2 con M.2 Shield Frozr
AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
Steel Armor: Protege las tarjetas VGA contra la flexión y las interferencias electromagnéticas para mejorar el rendimiento, la estabilidad y la resistencia.

Especificaciones

Características	Especificaciones
CHIPSET	INTEL B760
CPU	Support Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
	LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB
	Memory Support DDR5 6800+(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 6800+ MHz
	• 1DPC 2R Max speed up to 6400+ MHz
	• 2DPC 1R Max speed up to 6000+ MHz
	• 2DPC 2R Max speed up to 5600+ MHz
	Supports Intel® XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	1x HDMI™
	Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	1x D-Sub
	Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
SLOT	1x PCI-E x16 slot (Qty)
	2x PCI-E x1 slot (Qty)
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
STORAGE	2x M.2 (Qty)
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4/SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G (Qty)
	* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	1x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
	1x USB 3.2 Gen2 Type C (Rear)
LAN	Realtek® RTL8111H Gigabit LAN
AUDIO	Realtek® ALC897 Codec
	7.1-Channel High Definition Audio
INTERNAL IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Printer Port (JLPT)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
LED FEATURE	4x EZ Debug LED

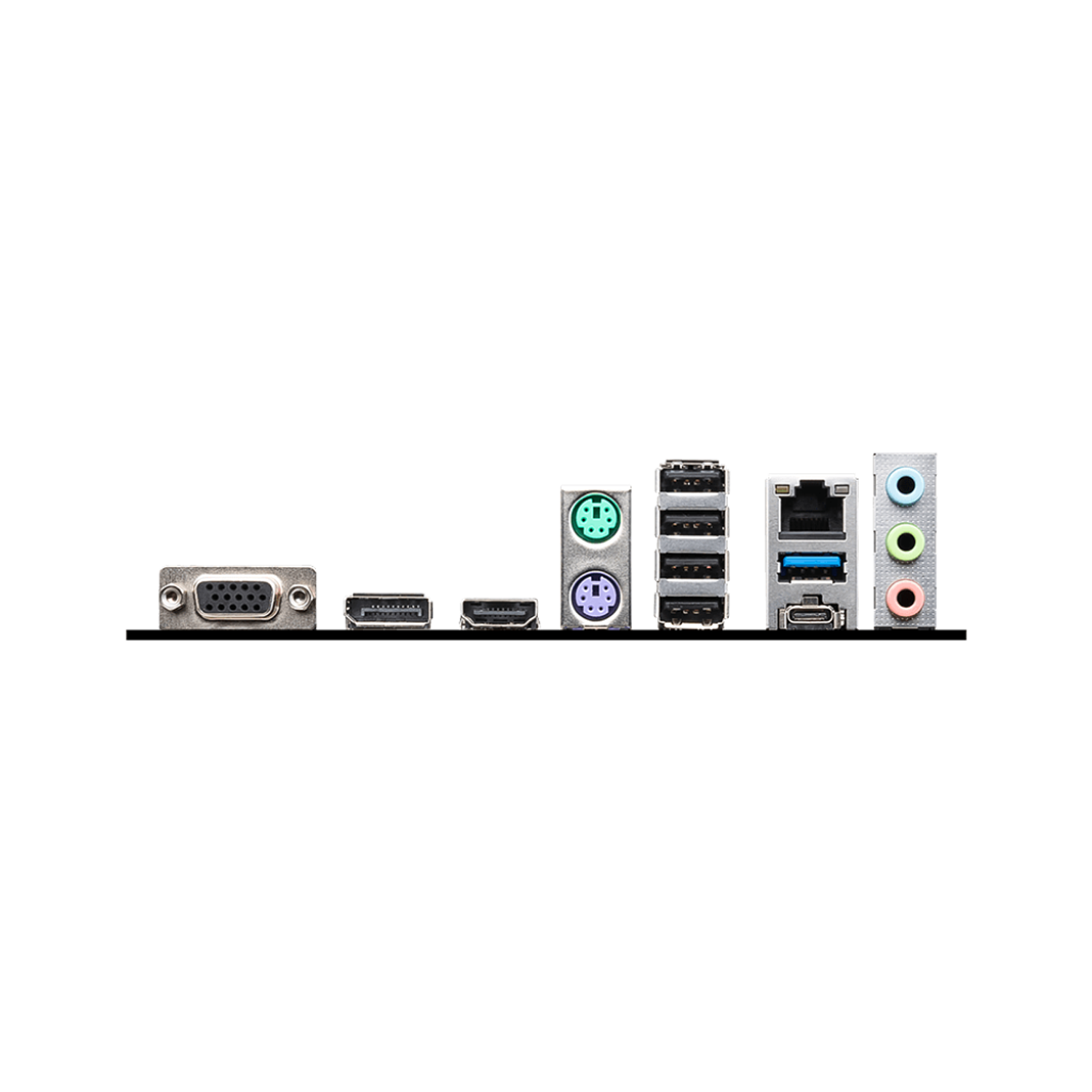

BACK PANEL PORTS	VGA
	DisplayPort
	HDMI™
	Keyboard/Mouse

Características	Especificaciones
	USB 2.0
	LAN port
	Audio Connectors
	USB 3.2 Gen 1 5Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-C)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO	mATX
	243.84mmx243.84mm
