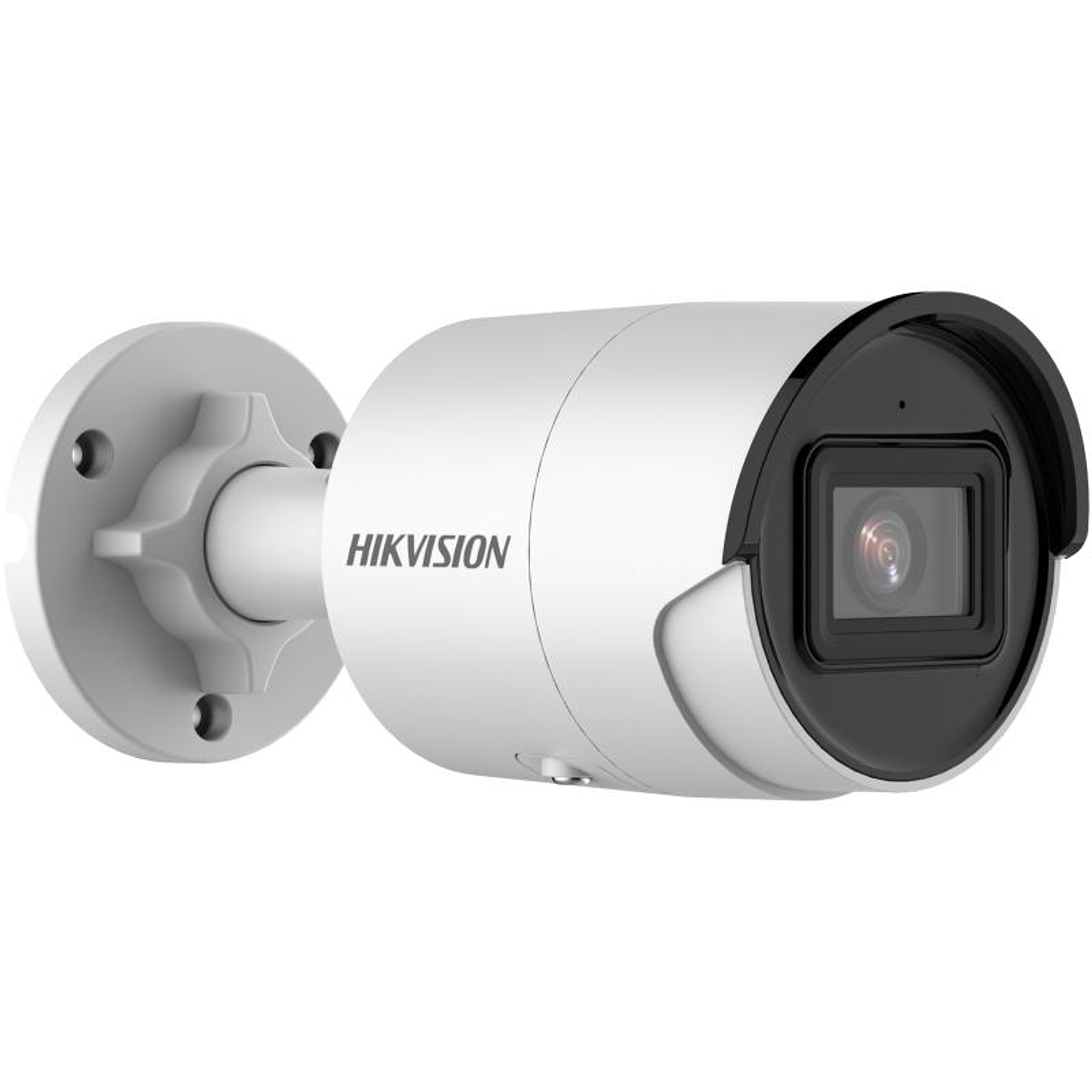

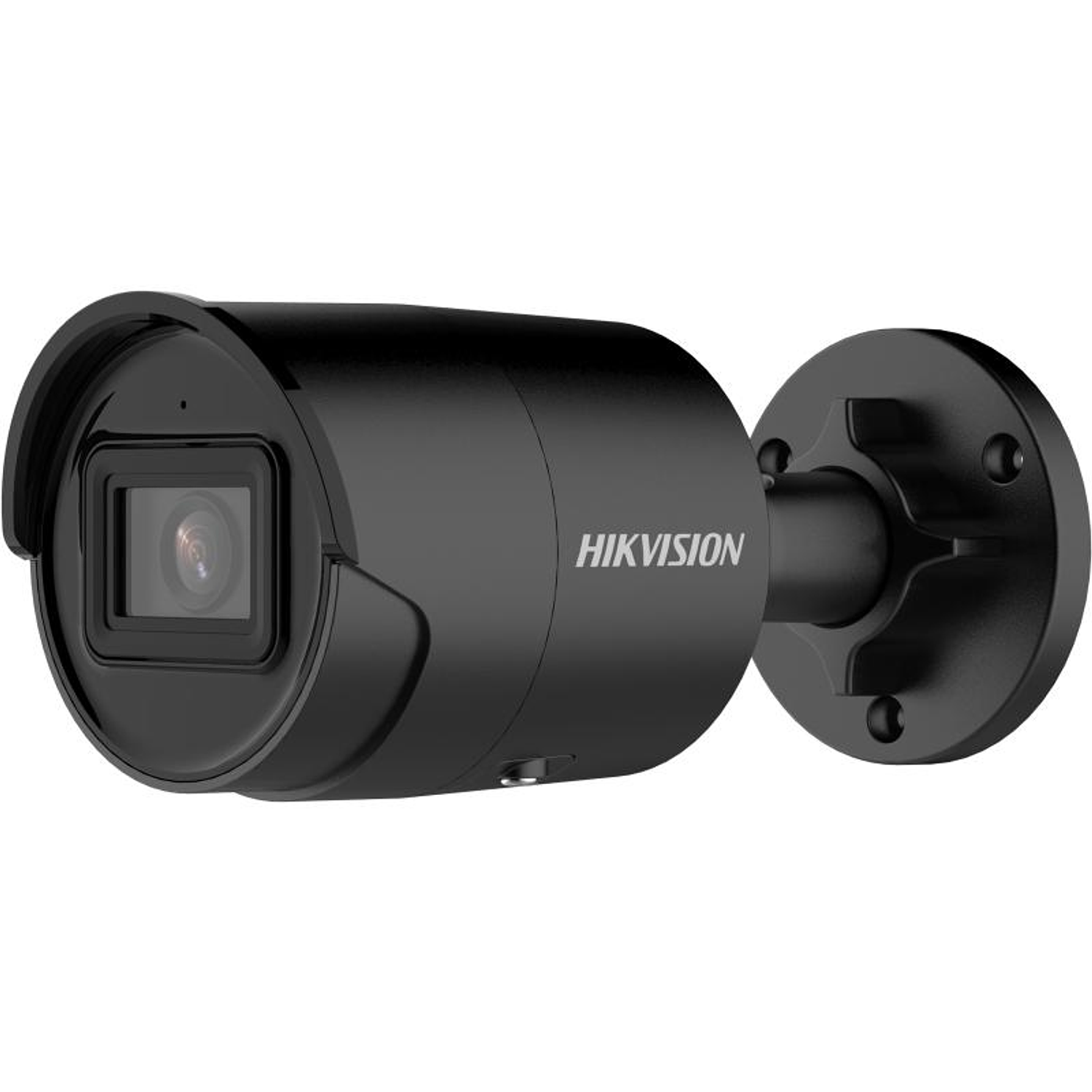

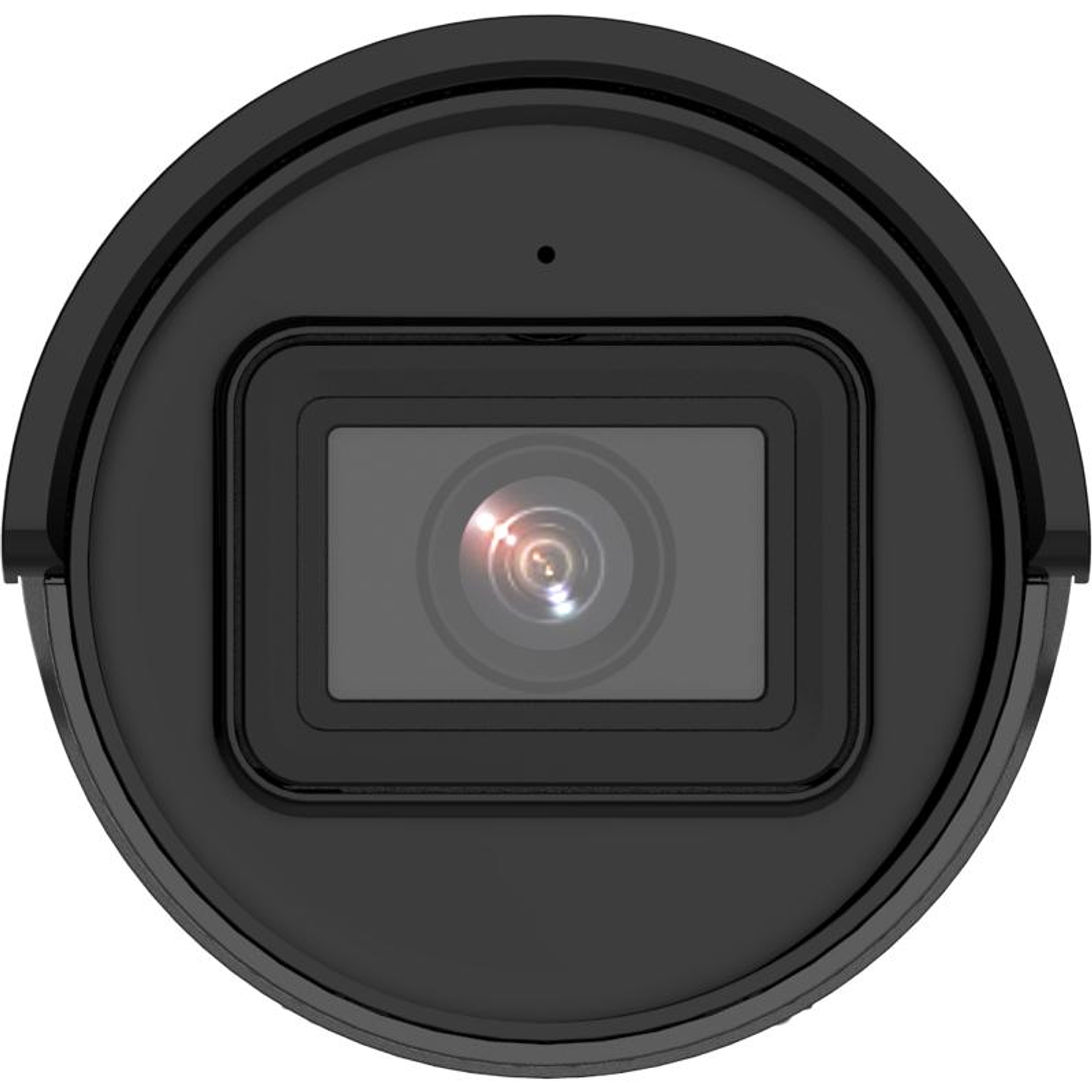

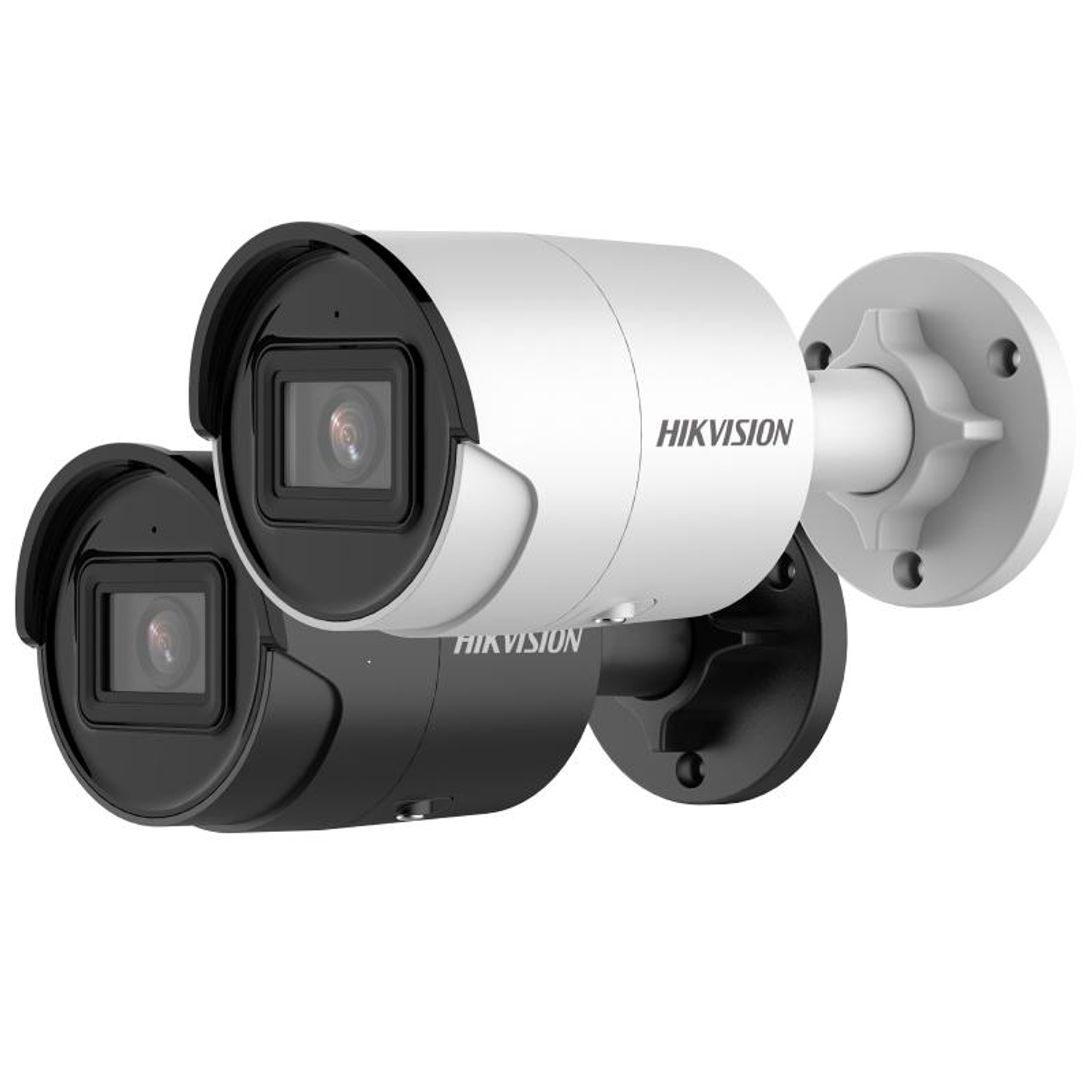

Cámara de red tipo bala fija AcuSense de 4 MP
Imágenes de alta calidad con resolución de 4 MP
Imágenes claras contra una fuerte luz de fondo gracias a la tecnología WDR de 120 dB
Tecnología de compresión H.265+ eficiente
-U: micrófono incorporado para seguridad de audio en tiempo real
Resistente al agua y al polvo (IP67)
Centrarse en la clasificación de objetivos humanos y de vehículos basada en el aprendizaje profundo
Especificaciones
| Especificación | Detalle |
|---|---|
| Cámara | Sensor De Imagen |
| 1/3″ Progressive Scan CMOS | |
| Max. Resolución | 2688 × 1520 |
| Iluminación Mínima | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Tiempo De Obturación | 1/3 s to 1/100,000 s |
| Día Y Noche | IR cut filter |
| Ajuste De Ángulo | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lente | Focal Length & FOV |
| 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° | |
| 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° | |
| 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61° | |
| Fixed focal lens, 2.8, 4, and 6 mm optional | |
| Montura Del Lente | M12 |
| Apertura | F1.6 |
| Iris Type | Fixed |
| DORI | DORI |
| 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m | |
| 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m | |
| 6 mm: D: 120 m, O: 47, R: 24, I: 12 m | |
| Iluminador | Rango De Luz Suplementaria |
| Up to 40 m | |
| Tipo De Luz Suplementaria | |
| IR | |
| IR Wavelength | |
| 850 nm | |
| Luz De Suplemento Inteligente | |
| Yes | |
| Vídeo | Main Stream |
| 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | |
| 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | |
| Sub-Stream | |
| 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | |
| 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Third Stream | |
| 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | |
| 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | |
| Compresión De Video | |
| Main stream: H.265/H.264/H.264+/H.265+ | |
| Sub-stream: H.265/H.264/MJPEG | |
| Third stream: H.265/H.264 | |
| Vídeo Bitrate | |
| 32 Kbps to 8 Mbps | |
| Tipo H.264 | |
| Baseline Profile/Main Profile/High Profile | |
| Tipo H.265 | |
| Main Profile | |
| Bit Rate Control | |
| CBR/VBR | |
| Codificación De Video Escalable (SVC) | |
| H.264 and H.265 encoding | |
| Región De Interés (ROI) | |
| 1 fixed region for main stream and sub-stream | |
| Audio | Compresión De Audio |
| -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC | |
| Velocidad De Bits De Audio | |
| -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/16-64 Kbps(AAC-LC) | |
| Frecuencia De Muestreo De Audio | |
| -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz | |
| Filtro De Ruido Ambiental | |
| -U: Yes | |
| Red | Protocolos |
| TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets | |
| Vista En Vivo Simultánea | |
| Up to 6 channels | |
| API | |
| Open Network Video Interface (Profile S, Profile G), ISAPI, SDK | |
| Usuario/Operador | |
| Up to 32 users. 3 user levels: administrator, operator and user | |
| Seguridad | |
| Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface | |
| Almacenamiento En Red | |
| NAS (NFS, SMB/CIFS), auto network replenishment (ANR) | |
| Cliente | |
| iVMS-4200, Hik-Connect, Hik-Central | |
| Navegador Web | |
| Plug-in required live view: IE 10, IE 11 | |
| Plug-in free live view : Chrome 57.0+, Firefox 52.0+ | |
| Local service: Chrome 57.0+, Firefox 52.0+ | |
| Imagen | Interruptor De Parámetros De Imagen |
| Yes | |
| Configuración De Imagen | |
| Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser | |
| Interruptor Día/Noche | |
| Day, Night, Auto, Schedule | |
| Wide Dynamic Range (WDR) | |
| 120 dB | |
| Mejora De La Imagen | |
| BLC, HLC, 3D DNR | |
| SNR | |
| ≥ 52 dB | |
| Interfaz | Ethernet Interface |
| 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| On-Board Storage | |
| Built-in memory card slot, support microSD card, up to 512 GB | |
| Micrófono Incorporado | |
| -U: Yes | |
| Reset Key | |
| Yes | |
| Evento | Evento Básico |
| Motion detection (human and vehicle targets classification), video tampering alarm, exception | |
| Evento Inteligente | |
| Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)) | |
| Face detection | |
| Linkage | |
| Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture | |
| General | Alimentación |
| 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection | |
| PoE: 802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7 W | |
| Dimensión | Ø70 × 161.7 mm (Ø2.76" × 6.37") |
| Dimensión Del Paquete | 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7") |
| Con Peso Del Paquete | Approx. 490 g (1.1 lb.) |
| Condiciones De Almacenaje | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Condiciones De Inicio Y Funcionamiento | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Función General | Anti-flicker, heartbeat, password reset via e-mail, pixel counter |
| Idioma | 33 languages |
| English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| Certificaciones | EMC |
| FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) | |
| Seguridad | |
| UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) | |
| Ambiente | |
| CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
| Protección | |
| IP67 (IEC 60529-2013) |
