SKU: B760M GAMING X AX
|
Gigabyte

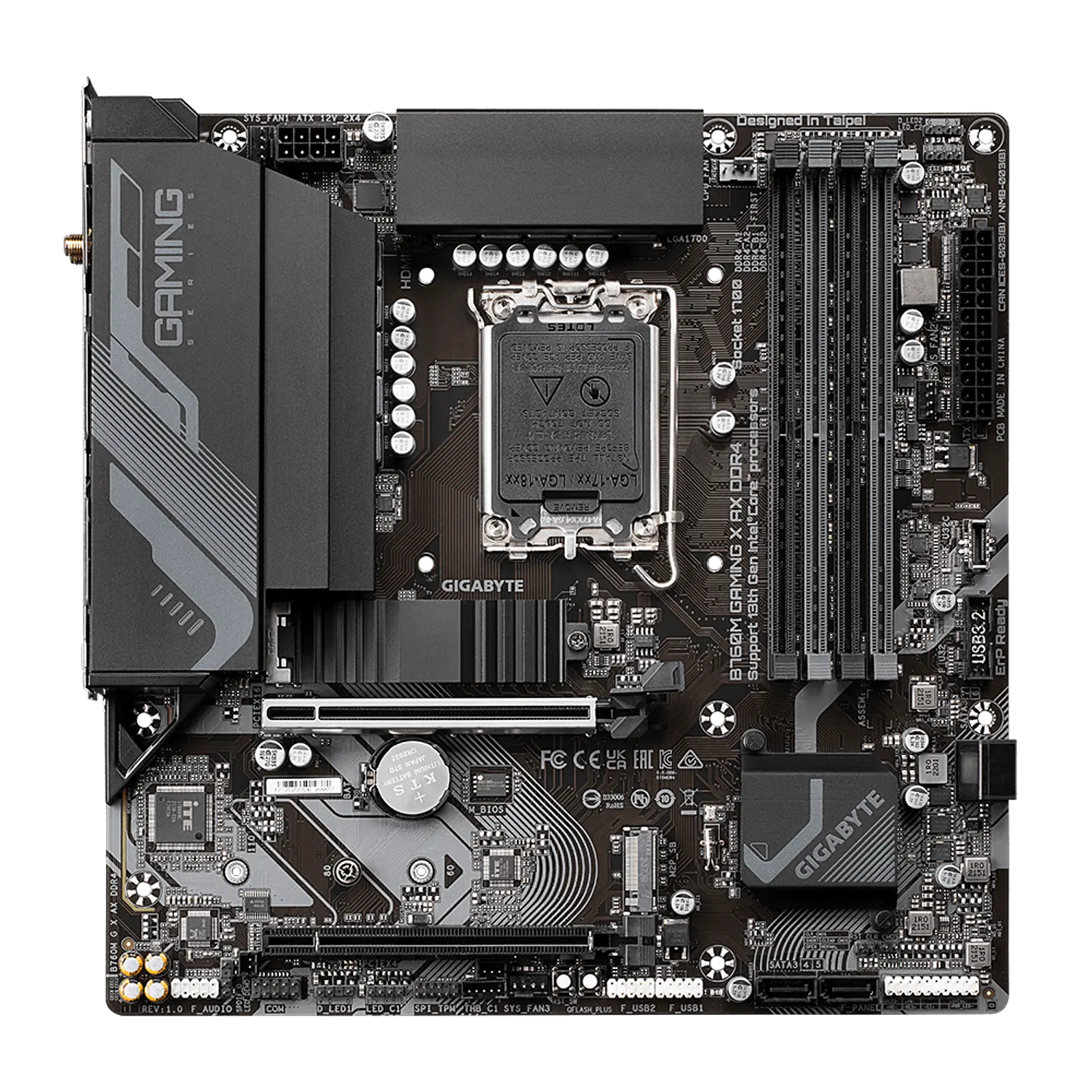

Gigabyte B760M GAMING X AX - 1.X Placa Madre micro ATX Socket LGA1700 B760 Chipset
Descripción
- Admite procesadores Intel® Core ™ 14.º/13.º/12.º
- Rendimiento incomparable: solución VRM digital híbrida de 8+1+1 fases
- DDR4 de doble canal: compatibilidad con módulos de memoria XMP de 4 * DIMM
- Almacenamiento de próxima generación: 2 * conectores PCIe 4.0 x4 M.2
- Diseño térmico avanzado y protección térmica M.2: para garantizar la estabilidad de energía de VRM y el rendimiento de SSD M.2
- EZ-Latch: Ranura PCIe 4.0x16 con diseño de liberación rápida
- Redes rápidas: LAN de 2,5 GbE y Wi-Fi 6E 802.11ax
- Conectividad extendida: USB-C frontal ® 10 Gb/s, DP, HDMI
- Smart Fan 6: cuenta con múltiples sensores de temperatura y cabezales de ventilador híbridos con FAN STOP
- Q-Flash Plus: actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
Especificaciones
| Componente | B760M GAMING X AX DDR4 1.3 | B760M GAMING X AX DDR4 1.2/1.4 |
|---|---|---|
| Procesador | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset | Intel® B760 Express Chipset |
| Memoria | DDR4 5333(O.C.)/... up to 128 GB (32 GB single DIMM capacity) | DDR4 5333(O.C.)/... up to 128 GB (32 GB single DIMM capacity) |
| Gráfica Integrada | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, 1 x HDMI | Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, 1 x HDMI |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Módulo de Comunicaciones Inalámbricas | Realtek® Wi-Fi 6E RTL8852CE, WIFI a, b, g, n, ac, ax, BLUETOOTH 5.3 | Intel® Wi-Fi 6E AX211, WIFI a, b, g, n, ac, ax, BLUETOOTH 5.3 |
| Zócalos de Expansión | CPU: 1 x PCI Express x16 (PCIEX16), Chipset: 1 x PCI Express x16 (PCIEX4) | CPU: 1 x PCI Express x16 (PCIEX16), Chipset: 1 x PCI Express x16 (PCIEX4) |
| Interfaz de Almacenamiento | CPU: 1 x M.2 PCIe 4.0 x4/x2, Chipset: 1 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s (RAID 0, 1, 5, 10) | CPU: 1 x M.2 PCIe 4.0 x4/x2, Chipset: 1 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s (RAID 0, 1, 5, 10) |
| USB | Chipset: 1 x USB Type-C® (USB 3.2 Gen 2), 5 x USB 3.2 Gen 1, 1 x USB 2.0, Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 | Chipset: 1 x USB Type-C® (USB 3.2 Gen 2), 5 x USB 3.2 Gen 1, 1 x USB 2.0, Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 |
| Conectores Internos E/S | Power connectors, Fan headers, LED strip headers, M.2 connectors, SATA connectors, Front panel headers, USB headers, Thunderbolt™ connectors, TPM header, Serial port header | Power connectors, Fan headers, LED strip headers, M.2 connectors, SATA connectors, Front panel headers, USB headers, Thunderbolt™ connectors, TPM header, Serial port header |
| Panel Trasero | USB ports, DisplayPort, HDMI, RJ-45, Audio jacks, SMA antenna connectors | USB ports, DisplayPort, HDMI, RJ-45, Audio jacks, SMA antenna connectors |
| Controlador de E/S | iTE® I/O Controller Chip | iTE® I/O Controller Chip |
| Monitorización Hardware | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS with licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | 1 x 256 Mbit flash, AMI UEFI BIOS with licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Otras Características | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Sistema Operativo | Support for Windows 11 64-bit, Support for Windows 10 64-bit | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| Formato | Micro ATX Form Factor; 24.4cm x 24.4cm | Micro ATX Form Factor; 24.4cm x 24.4cm |
